Budnick Converting ®
Adhesive Applications
2332
Black PE Foam Double Coated Rubber

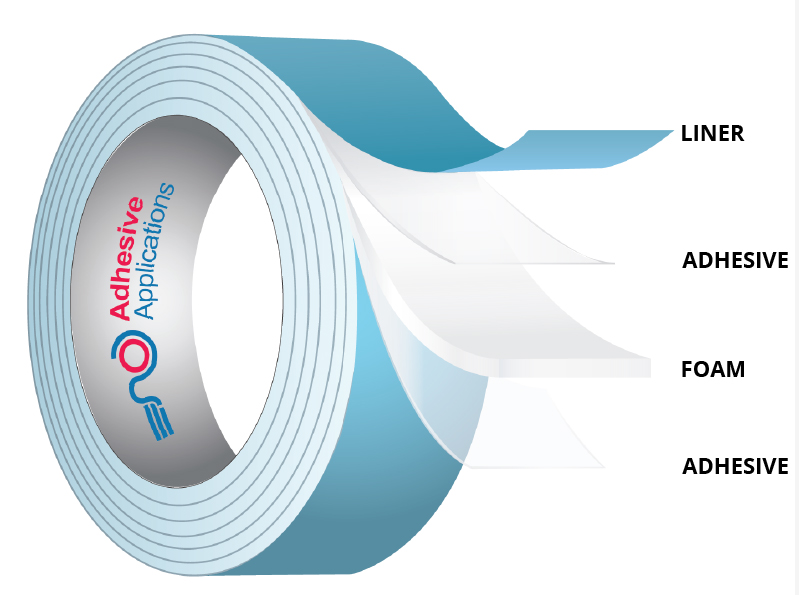

2232 is a 1/32” thick black closed, crosslinked polyethylene foam coated on both sides with a high performance rubber based adhesive with a blue poly liner. It has a synthetic rubber based adhesive which provides superior performance in applications requiring an aggressive high tack/high shear pressure sensitive foam tape. It is primarily used for indoor general purpose mounting applications.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | PE - Polyethylene |
|---|---|
| Adhesive | Rubber |
| Thickness |
| Tensile | 107.00 lbs/in |
|---|---|
| Elongation | 355.00% |
| Adhesion (liner) | 125 oz/in |
| Adhesion (unwind) | 125 oz/in |
| Min. Application Temp | 50° F |
|---|---|
| Min. Service Temp | |
| Max Short-Term Temp | 155° F |
| Max Long-Term Temp |
Product Features
- Static Shear - minimum requirement 15psi for 100+ minutes
- Probe tack average 975
- Aggressive, high tack adhesive
- Bonds to many different substrates
- Standard liner is blue poly
- Available in black foam as product no. 2232
- Easily die cut
- Low compression set
- Good conformability, cushioning, & vibration dampening
Markets Served
- Arts & Entertainment
- Extruders of Plastic and Rubber
- Industrial
- Signage, Banners, & Printing
Adhesive Tape Applications
- Wire raceways and mounts
- Shower and tub enclosures
- Signage
- Plastic extrusions
- Window trim
Adhesive Tape Colors
- Black
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
