Budnick Converting ®
econOtape

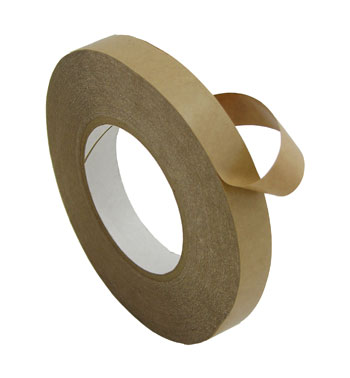

ADHTRANS 3017
2 mil Acrylic Transfer
ADHTRANS 3017 is a 2 mil glass stabilized solvent based modified acrylic transfer. It has a 2.8 mil thick gold siliconized paper liner. The glass stabilization allows for lathe slitting and cleaner unwinding. It's moderate adhesion to most surfaces makes this a very economical choice for general purpose bonding/mounnting applications. Alternate to: Shurtape TA-450,3M 927, Berry Plastics 065, Achem AT15SA, Venture 3802, Adchem 7332, Scapa UP2020
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | |
|---|---|
| Adhesive | Acrylic |
| Thickness | 2 Mils |
| Tensile | |
|---|---|
| Elongation | |
| Adhesive Activation | Pressure |
| Adhesion (unwind) | 23 oz/in |
| Min. Application Temp | 40° F |
|---|---|
| Min. Service Temp | -22° F |
| Max Short-Term Temp | 230° F |
| Max Long-Term Temp |
Product Features
- Solvent based modified acrylic
- Glass stabilized for cleaner unwind
- Moderate adhesion to many substrates
Markets Served
- Arts & Entertainment
- Commercial printing
- Paper products
- Signage, Banners, & Printing
Adhesive Tape Applications
- General purpose bonding/mounting
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
