Budnick Converting ®
econOtape
DCPAPER 3520
***Discontinued***Double Coated Crepe Paper Tape

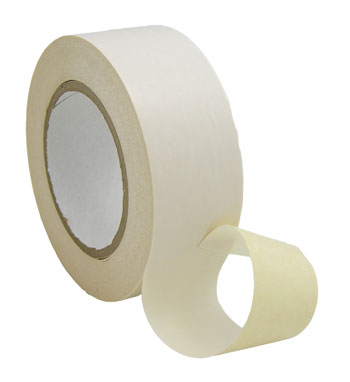

**Discontinued**DCPAPER 3520 is a 6.0mil (9.2 mil with liner) double coated paper tape that consists of a 3.5 mil high quality saturated crepe paper coated on both sides with a medium tack, high shear, synthetic copolymer rubber adhesive. The adhesive is wound on a 60# white calendared siliconized paper liner. This tape offers good adhesion with excellent repositionability. It is used for the general purpose bonding of papers, films, and fabrics, splicing, and core starts. DCPAPER 3520 is great for holding wood cuts and dies with little to no residue upon removal and mounting golf club grip handles depending on the lubricant type. This tape is not meant to be laminated or bonded to materials containing migrating plasticizers.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | Crepe Paper |
|---|---|
| Adhesive | Rubber |
| Thickness | 6 Mils |
| Tensile | 16.00 lbs/in |
|---|---|
| Elongation | 5.00% |
| Adhesion (liner) | 80 oz/in |
| Adhesion (unwind) | 80 oz/in |
| Min. Application Temp | 60° F |
|---|---|
| Min. Service Temp | 0° F |
| Max Short-Term Temp | |
| Max Long-Term Temp | 180° F |
Product Features
- 6.0mil High Quality Saturated Crepe Paper Tape
- Good Adhesion
- Excellent Repositionability
- Little to No Residue on Removal
Markets Served
- Commercial
- Paper products
- Industrial
- Recreational
Adhesive Tape Applications
- Bonding Papers, Films, and Fabrics
- Core Starts
- Splicing
- Holding Wood Cuts and Dies
Adhesive Tape Colors
- White
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
