Budnick Converting ®
econOtape
DCPAPER 3522

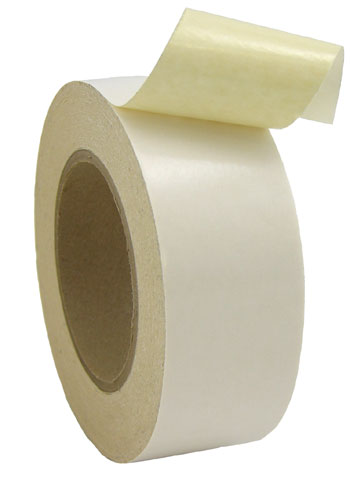

Double Coated Crepe Paper Tape
DCPAPER 3522 is a 7.0 mil (10.2 mil with liner) double coated paper tape that consists of a 5 mil high quality saturated crepe paper coated on both sides with a high tack, high shear, hot melt rubber adhesive. The adhesive is wound on a 3.2mil super calendared white siliconized paper liner. DCPAPER 3522 works well on irregular surfaces, and is used for core start-ups, splicing, holding, joining, attaching, mounting, and laminating, where high shear and high tack are required. It is also good for holding wood cuts and dies and mounting rubber or plastic printing plates. This tape should not be used to laminate or bond to materals containing migrating plasticizers.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | Crepe Paper |
|---|---|
| Adhesive | Rubber |
| Thickness | 7 Mils |
| Tensile | 21.00 lbs/in |
|---|---|
| Elongation | 7.00% |
| Adhesion (liner) | 100 oz/in |
| Adhesion (unwind) | 100 oz/in |
| Min. Application Temp | 60° F |
|---|---|
| Min. Service Temp | -5° F |
| Max Short-Term Temp | |
| Max Long-Term Temp | 180° F |
Product Features
- 7.0mil High Quality Saturated Crepe Paper Tape
- High Tack and High Shear
- Hot Melt Rubber Adhesive
- Works Well on Irregular Surfaces
Markets Served
- Industrial
- Commercial printing
- Commercial
Adhesive Tape Applications
- Core Start-Ups
- Splicing
- Holding, Joining, Attaching, and Mounting
- Laminating
- Mounting Rubber or Plastic Printing Plates
Adhesive Tape Colors
- White
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
