Budnick Converting ®
econOtape
DCPET 3542

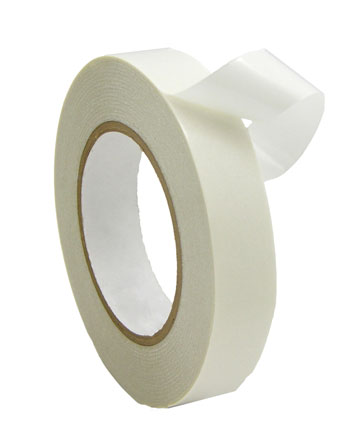

3.4mil Double Coated Polyester Film
DCPET 3542 is a 3.4mil (0.086mm) double coated PET tape. The 0.4mil polyester film is coated with an aggressive synthetic hot melt rubber adhesive and wount on a 2.7 mil (82 gr) white siliconized paper release liner. DCPET 3542 offers superior moisture resistance in humid conditions once bonded as well as an excellent quick-stick with moderate temperature resistance. This tape is not recommended for use in applications at temperatures above 158° F. DCPET 3542 is perfect for splicing of papers, plastics, films, foils, and more. It is used in general purpose bonding, mounting, and laminating applications, such as nameplates and mousepad assembly. DCPET 3542 is enviromentally friendly with a solventless adhesive - ROHS complient.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | PET - Polyester |
|---|---|
| Adhesive | Rubber |
| Thickness | 3.4 Mils |
| Tensile | |
|---|---|
| Elongation | 1310.00% |
| Adhesion (liner) | 120 oz/in |
| Adhesion (unwind) | 120 oz/in |
| Min. Application Temp | 40° F |
|---|---|
| Min. Service Temp | -14° F |
| Max Short-Term Temp | 158° F |
| Max Long-Term Temp |
Product Features
- 3.4 mil Double-Coated Polyester Tape
- Synthetic Hot Melt Rubber Adhesive
- Superior Moisture Resistance Once Bonded
- Excellent Quick-Stick
- Moderate Temperature Resistance
Markets Served
- Commercial
- Commercial printing
- Paper products
- Signage, Banners, & Printing
Adhesive Tape Applications
- Splicing of Papers, Plastics, and Films
- General Purpose Bonding
- Mounting
- Laminating
Adhesive Tape Colors
- Transparent
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
