Budnick Converting ®
econOtape
DCPET 3543
***Discontinued***

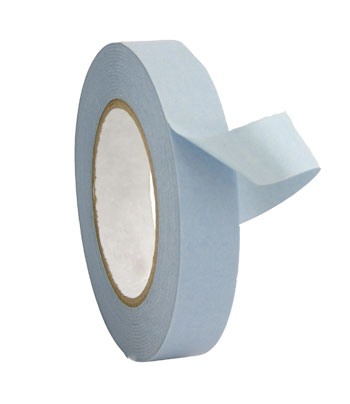

**Discontinued**DCPET is a 2.4 mil (0.06MM) double coated tape featuring a 0.4mil (0.012MM) clear polyester film coated on both sides with a solvent free water based acrylic adhesive and a light blue siliconized paper liner. This tape adheres to nearly all materials, even to difficult surfaces like foams and PE film. It is a good alternative to adhesive transfer tapes as it is thin, hand tearable, and easier to apply by hand. DCPET offers very good temperature, UV, aging and water resistance with no plasticizer migration. It can be used for splicing, bonding, and laminating paper, corrugated paper, films, plastics, foils, etc. Other uses include mounting nameplates, keyboard assemblies and laminating dissimilar metals. 3" Neutral Core/Carton.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | PET - Polyester |
|---|---|
| Adhesive | Acrylic |
| Thickness | 2.4 Mils |
| Tensile | 4.00 lbs/in |
|---|---|
| Elongation | 20.00% |
| Adhesion (liner) | 47 oz/in |
| Adhesion (unwind) | 47 oz/in |
| Min. Application Temp | 40° F |
|---|---|
| Min. Service Temp | -40° F |
| Max Short-Term Temp | 285° F |
| Max Long-Term Temp | 212° F |
Product Features
- 2.4mil Double Coated Polyester Film Tape
- Solvent-Free Water-Based Acrylic Adhesive
- Adheres to Nearly All Materials
- Hand Tearable
- Very Good Temperature, UV, Aging, and Water Resistance
- No Plasticizer Migration
Markets Served
- Commercial printing
- Industrial
- Paper products
- Commercial
Adhesive Tape Applications
- Splicing, Bonding and Laminating Paper
- Splicing, Bonding and Laminating Films and Plastics
- Mounting Nameplates
- Keyboard Assembly
- Laminating Dissimilar Metals
Adhesive Tape Colors
- Transparent
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
