Budnick Converting ®
econOtape
DCPET 3544

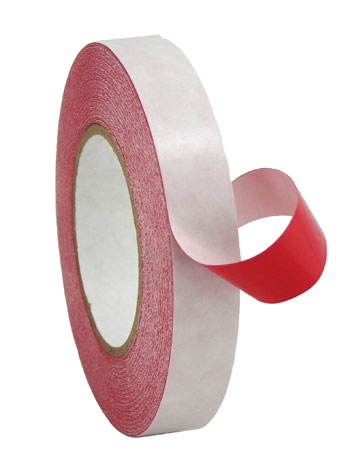

3.5mil Bright Red Polyester Double Coated Tape
DCPET 3544 is a 3.5mil (0.089mm) double coated tape consisting of a polyester film coated on both sides with an extremely aggressive high performace red solvent-based pure acrylic adhesive on a siliconized paper liiner. It offers high tack, adhesion, and shear strength coupled with excellent low and high temperature performance. DCPET 3544 is used for splicing paper, corrugated paper, plastics, films, foils, and other continuous web processes when a visual splice is critical.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | PET - Polyester |
|---|---|
| Adhesive | Acrylic |
| Thickness | 3.5 Mils |
| Tensile | 7.50 lbs/in |
|---|---|
| Elongation | 100.00% |
| Adhesion (liner) | 50 oz/in |
| Adhesion (unwind) | 50 oz/in |
| Min. Application Temp | 40° F |
|---|---|
| Min. Service Temp | -17° F |
| Max Short-Term Temp | 350° F |
| Max Long-Term Temp | 250° F |
Product Features
- 3.5mil Polyester Film Tape
- High Tack, Adhesion, and Shear Strength
- Excellent Low and High Temperature Performance
- Extremely Aggressive High Performance Red Acrylic Adhesive
Markets Served
- Industrial
Adhesive Tape Applications
- Splicing Various Continuous Web Processes when a Visual Splice is Critical
Adhesive Tape Colors
- Red
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
