Budnick Converting ®
econOtape
DCPET 3545
3.5 mil DC Polyester

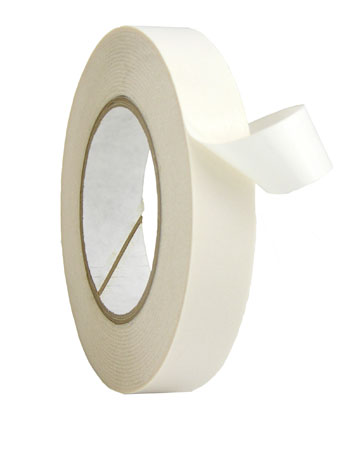

DCPET 3545 is a 3.5 mil total (0.5mil polyester film backing) double coated PET tape coated on both sides with an extremely aggressive quick stick, high peel and high shear strength pure acrylic adhesive. It has superior moisture resistance in high humidity. DCPET 3545 is used for high speed flying splice of paper, corrugated paper, plastics, films, foils, etc.; mounting nameplates, keyboard assy.; laminating dissimilar metals. 3" Neutral Core/Carton.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | PET - Polyester |
|---|---|
| Adhesive | Acrylic |
| Thickness | 3.5 Mils |
| Tensile | 7.50 lbs/in |
|---|---|
| Elongation | 100.00% |
| Adhesion (liner) | 47 oz/in |
| Adhesion (unwind) | 47 oz/in |
| Min. Application Temp | 40° F |
|---|---|
| Min. Service Temp | -40° F |
| Max Short-Term Temp | 250° F |
| Max Long-Term Temp |
Product Features
- Extremely aggressive quick stick adhesive
- High peel and high shear strength
- Pure acrylic adhesive
Markets Served
- Commercial printing
- Electronics
- Industrial
- Paper products
- Signage, Banners, & Printing
Adhesive Tape Applications
- Flying splice for paper
- Corrugated splicing
- Nameplate mounting
- Laminating metals
- Keyboard assembly
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
