Budnick Converting ®
econOtape

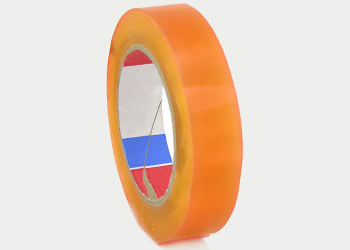

DCPVC 3550
3.2mil Self-Wound Double-Coated PVC
DCPVC 3550 is a 3.2mil (0.08mm) self-wound transparent PVC film that is differentially coated with a high/low acrylic adhesive system for a smooth and easy unwind. It is especially suited for applications where a liner would be a hindrance. DCPVC 3550 is used for bag sealing, core start-ups, and the splicing of plastics, metal foils, paper, and cardboard. Its differential adhesive system makes this tape ideal as a closure system for thin film bags, and is also used for mounting in the graphic arts industry.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | PVC - Polyvinylchloride |
|---|---|
| Adhesive | Acrylic |
| Thickness | 3.2 Mils |
| Tensile | 22.00 lbs/in |
|---|---|
| Elongation | 40.00% |
| Adhesion (liner) | 30 oz/in |
| Adhesion (unwind) | 22 oz/in |
| Min. Application Temp | 40° F |
|---|---|
| Min. Service Temp | |
| Max Short-Term Temp | 160° F |
| Max Long-Term Temp |
Product Features
- 3.2mil PVC Film Tape
- Differentially Coated
- Self-Wound
Markets Served
- Signage, Banners, & Printing
- Arts & Entertainment
- Industrial
- Plastic bag manufacturing
- Signage, Banners, & Printing
Adhesive Tape Applications
- Bag Sealing
- Core Start-Ups
- Splicing of Plastics, Metal Foils, Paper, and Cardboard
- Sealing Thin Film Bags
- Graphic Arts Mounting
Adhesive Tape Colors
- Clear
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
