Budnick Converting ®
econOtape
DCTISSUE 3001
T-TAK ™ Heavy Duty

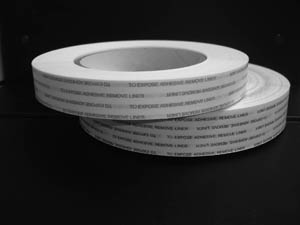

T-Tak ™ is a versatile double coated tissue tape with an extended liner. It is a 3.7 mil (6.1 mil total) synthetic rubber tape with exceptional holding strength and an aggressive adhesive system with a 42# coated Kraft paper with finger-lift edge. This tape offers superior performance on heavier weight papers and light board stocks. It also works well on curved and uneven surfaces. T-Tak is also perfect for mounting heavy posters and signs, promotional displays, inventory tags on cartons, and mounting name plates. It works well for permanent poly bag sealing, board envelope and box fabrication, business forms presses and collators, tag and label mounting, as well as packaging and box closure. Adhesive and Carrier thickness: 3.7 mil. Liner thickness: 2.4 mil. 180° peel adhesion: 84.66oz/in. Loop tack: 2400.0g/in². Shear strength (1000g): 48+ hours. Application temperature range: 40°F to 105°F. Operating temperature range: 0°F to 140°F.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | Tissue |
|---|---|
| Adhesive | Rubber |
| Thickness | 3.7 Mils |
| Tensile | |
|---|---|
| Elongation | |
| Adhesion (liner) | 84.66 oz/in |
| Adhesion (unwind) | 84.66 oz/in |
| Min. Application Temp | 40° F |
|---|---|
| Min. Service Temp | 0° F |
| Max Short-Term Temp | 140° F |
| Max Long-Term Temp |
Product Features
- Finger-lift extended liner
- Exceptional holding strength
- Aggressive adhesive system
Markets Served
- Signage, Banners, & Printing
- Plastic bag manufacturing
- Paper products
- Arts & Entertainment
- Commercial printing
Adhesive Tape Applications
- Mounting heavy posters and signs
- Promotional displays
- Inventory tags on cartons
- Mounting name plates
- Sealing poly bags
- Sealing board envelopes and cartons
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
