Budnick Converting ®
econOtape
DCTISSUE 3650

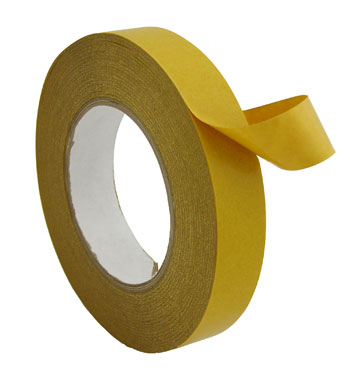

4.0mil Double Coated Tissue Tape
DCTISSUE 3650 is a 4.0mil double coated tissue tape consisting of a 1.8mil tissue substrate coated on both sides with an aggressive synthetic hot melt rubber adhesive. The tape comes wound with a siliconized glassine paper release liner. This tape offers excellent quick stick and peel strength. It is good for flying splice or static splicing where high resistance to heat is not required. DCTISSUE 3650 is excellent for nameplates, trophies, and core start-ups. It is used for laminating cork, cloth or felt, and is useful in the splicing of papers, textiles, and plastics.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | Tissue |
|---|---|
| Adhesive | Rubber |
| Thickness | 4 Mils |
| Tensile | 5.70 lbs/in |
|---|---|
| Elongation | 5.00% |
| Adhesion (liner) | 90 oz/in |
| Adhesion (unwind) | 90 oz/in |
| Min. Application Temp | 60° F |
|---|---|
| Min. Service Temp | 60° F |
| Max Short-Term Temp | 140° F |
| Max Long-Term Temp | 140° F |
Product Features
- 4.0mil Double Coated Tissue Tape
- Aggressive Synthetic Hot Melt Rubber Adhesive
- Excellent Quick Stick and Peel Strength
- Flying Splice Capable
Markets Served
- Commercial printing
- Industrial
Adhesive Tape Applications
- Nameplates and Trophies
- Core Start-Ups
- Laminating Cork, Cloth, or Felt
- Splicing Papers, Textiles, and Plastics
Adhesive Tape Colors
- Translucent
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
