Budnick Converting ®
econOtape
ELE&WH 4100
***Discontinued*** Electrical Insulating Tape

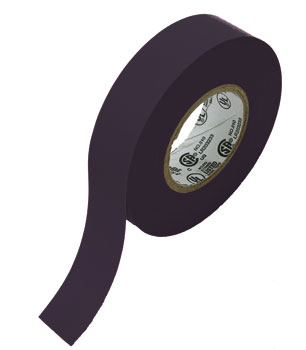

ELE&WH 4100 is a 7 mil (0.178mm) PVC electrical insulation tape with a natural rubber adhesive. ELE&WH 4100 is used for wire and cable insulation, bundling, and primary splice insulation at no more than 600V. It is non-flame retardant.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | PVC - Polyvinylchloride |
|---|---|
| Adhesive | Rubber |
| Thickness | 7 Mils |
| Tensile | 18.00 lbs/in |
|---|---|
| Elongation | 200.00% |
| Adhesive Activation | Pressure |
| Adhesion (unwind) | 18 oz/in |
| Min. Application Temp | 40° F |
|---|---|
| Min. Service Temp | |
| Max Short-Term Temp | 176° F |
| Max Long-Term Temp |
Product Features
- 7 Mil PVC Electrical Tape
- Natural Rubber Adhesive
Markets Served
- Electronics
Adhesive Tape Applications
- Wire and Cable Insulation
- Bundling
- Primary Splice Insulation (<600V)
Adhesive Tape Colors
- Black
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
