Budnick Converting ®
Novagard / Foam Seal

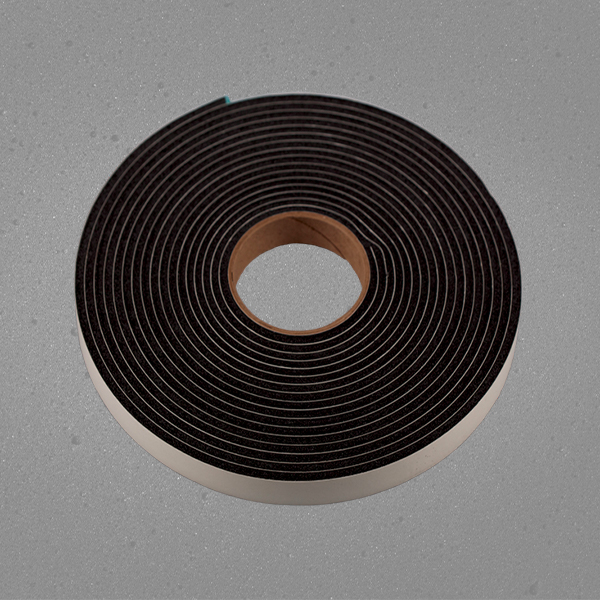

60MG
Medical Grade PVC Foam
60MG Medical Grade Foam is an economical, closed cell foam that can be used for applications requiring a seal for tight radius curves. 60MG has been independently tested and certified to comply with the ISO 10993-10 protocol for direct skin contact. This low density PVC foam remains pliable at temperatures of -20°C to 78°C (-4°F to 172°F).
All Foam Seal Medical Grade foams are sulphur free, low VOC, certified Prop 65 compliant, and resistant to UV, petroleum, & cleaning solutions.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | PVC - Polyvinylchloride |
|---|---|
| Adhesive | |
| Thickness |
| Tensile | 20.00 lbs/in |
|---|---|
| Elongation | 110.00% |
| Adhesive Activation | Pressure |
| Adhesion (unwind) | 12 oz/in |
| Min. Application Temp | 50° F |
|---|---|
| Min. Service Temp | -4° F |
| Max Short-Term Temp | 180° F |
| Max Long-Term Temp |
Product Features
- Medical Grade
- Sulphur Free
- Independently tested and certified to comply with the ISO 10993-10 protocol for direct skin contact.
- Remains pliable at temperatures of -20°C to 78°C (-4°F to 172°F)
- Available in any gauge from .0625” to 1
- Offered in standard colors (black, gray) as well as specialty colors (white, natural), and can be produced with or without pressure sensitive adhesive (PSA).
- It has a shelf life of 6 months with adhesive and 2 years without adhesive when stored at or below 75°F. Minimums may apply.
- Moisture resistant
- Low VOC
- 100% closed cell
- Available with or without adhesive
- Self-extinguishing (MVSS 302)
Markets Served
- Medical Device
- Industrial
Adhesive Tape Applications
- Face Shields
- Face Mask (N95)
- Wheelchair seat cushions
- Diagnostic devices
- Therapeutic accessories
- Pads for diagnostic & therapeutic devices
- Sports equipment
- Virtual reality head gear (comfort and seal against light)
- Ankle braces
- Shoe insoles (absorb shock)
- Exercise mats
- Hearing protection
Adhesive Tape Colors
- Black
- Gray
- Natural
- White
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
