3M™ VHB™ Tape GPH-160GF

High Temperature Acrylic Foam Tape

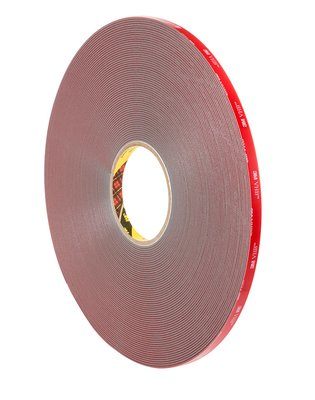

3M™ VHB™ Tape GPH-160GF is a 0.062 in (1.6 mm) thick gray double sided acrylic foam tape with a red polyethylene film liner. The conformable foam provides good contact between substrates even when they are lightly mismatched. 3M™ VHB™ GPH-160GF tape is part of the 3M™ VHB™ GPH series tapes which bonds a variety of substrates including many metal, plastic and painted materials. This tape family has superior high temperature performance, making it often suitable for assembly prior to powder coat or liquid paint processes involving a paint bake cycle and applications with high operating temperatures. Ideal for stiffeners applied to architectural metal panels, elevator door panels, equipment enclosures, metal cabinets, appliance, signage etc.

Product Properties Related Information Custom Quote

Converting Services

At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.

Backing/Carrier Acrylic Foam
Adhesive Acrylic
Thickness 63 Mils
Tensile
Elongation
Adhesion (liner)
Adhesion (unwind) 304 oz/in
Min. Application Temp 50° F
Min. Service Temp
Max Short-Term Temp 450° F
Max Long-Term Temp 300° F

Product Features

  • Fast and easy-to-use permanent bonding method provides high strength and long-term durability
  • Virtually invisible fastening keeps surfaces smooth
  • Can replace mechanical fasteners (rivets, welds, screws) or liquid adhesives
  • High temperature resistance (short term (minutes, hours) to 450°F (230°C)) allowing assembly prior to powder coat or liquid paint processes involving a paint-bake cycle
  • High initial tack
  • Eliminates drilling, grinding, refinishing, screwing, welding and associated re-work
  • Creates a permanent seal against water, moisture and more
  • Pressure sensitive adhesive bonds on contact to provide immediate handling strength
  • Allows the use of thinner, lighter weight and dissimilar materials

Markets Served

  • Aerospace
  • Automotive
  • Appliance

Adhesive Tape Colors

  • Gray

Data provided by Budnick Converting, Inc.

The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.

It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.

Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.

Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
