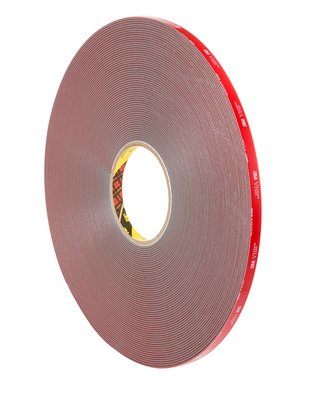

VHB™ Tape GPH-060GF
High Temperature Acrylic Foam Tape
3M™ VHB™ Tape GPH-060GF is a permanent bonding solution that can replace traditional mechanical fasteners and liquid adhesives in challenging, high temperature applications. Its acrylic foam core provides a good balance of strength and conformability. 3M VHB Tape GPH-060GF has excellent temperature resistance, ideal for powder coat or liquid paint processes which undergo a heat bake cycle.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | Acrylic Foam |
|---|---|
| Adhesive | Acrylic |
| Thickness | 24 Mils |
| Tensile | 90.00 lbs/in |
|---|---|
| Elongation | |
| Adhesion (liner) | |
| Adhesion (unwind) | 224 oz/in |
| Min. Application Temp | 50° F |
|---|---|
| Min. Service Temp | |
| Max Short-Term Temp | 450° F |
| Max Long-Term Temp | 300° F |
Product Features
- Good adhesion to high and medium surface energy materials (metals, glass, plastics) as well as many coated or painted surfaces
- 100% closed-cell acrylic foam
- High-temperature performance (short term 230°C)
- Good balance of high temperature and peel & shear performance
- High initial tack
- Soft foam enables stress relaxation & an easy application
- Good sealing properties
- For indoor and outdoor applications
Markets Served
- Aerospace
- Appliance
- Automotive
- Construction
- Truck and trailer body
- Marine
- Industrial
- Electronics
- Medical Device
Adhesive Tape Applications
- 3M™ VHB™ Tapes GPH Series temperature performance enables bonding of materials in applications with high operating temperatures such as prior to processing in a powder coating line
- Capability to bond to a variety of substrates makes 3M™ VHB™ Tapes GPH Series a good fit for multi-material bonding – those substrates have a high or medium surface energy including many metals (e.g. stainless steel) and plastics (e.g. Polyamide, PMMA, ABS)
- For applications in metal working, signage, applications and specialty vehicles
Adhesive Tape Colors
- Gray
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
