BudVent™

Striped Adhesive Venting Tape

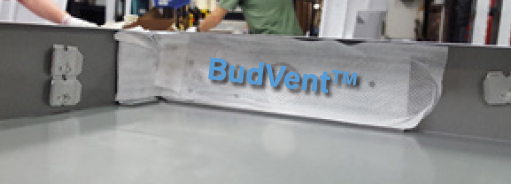

BudVent™ is a strong polypropylene, non-woven fabric with adhesive stripes that are covered by a release liner. It is highly permeable material. BudVent™ is specifically designed to cover vent holes and seams. It holds foam insulation in and allows more air and gas to escape during foam-in-place injection. BudVent™ venting tape allows foam to draw more efficiently throughout the entire cavity. By eliminating foam voids and allowing the foam to cure faster, BudVent™ reduces non-conformances, may lower foam usage, and decreases labor hours throughout the production process. Customers using other vent tape, Permagum and masking tape virtually eliminated foam leaks and cleanup time by switching to just BudVent™. Because it comes on a release liner, this product is typically used in custom roll widths and butt cut lengths.

Product Properties Related Information Custom Quote

Converting Services

At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.

Backing/Carrier Non-Woven
Adhesive Rubber
Thickness 21 Mils
Tensile
Elongation 80.00%
Adhesive Activation Pressure
Adhesion (unwind) 160 oz/in
Min. Application Temp 50° F
Min. Service Temp 0° F
Max Short-Term Temp 200° F
Max Long-Term Temp

Product Features

  • Air & gas permeable
  • Strong enough to hold foam in
  • High tack & peel rubber adhesive stripes
  • UV & plasticizer resistant adhesive
  • Foam adheres well to the PP backing
  • Available in rolls or die cut parts
  • MD tensile = 22.5 lbf
  • CD tensile = 20 lbf
  • MD Tear strength = 7.8 lbf
  • CD tear strength = 9.75 lbf

Markets Served

  • Appliance
  • Industrial

Adhesive Tape Applications

  • Polyurethane foam in place vent tape
  • Outgas venting for polyurethane foam injection
  • Appliance venting tape

Adhesive Tape Colors

  • White

Data provided by Budnick Converting, Inc.

The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.

It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.

Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.

Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
