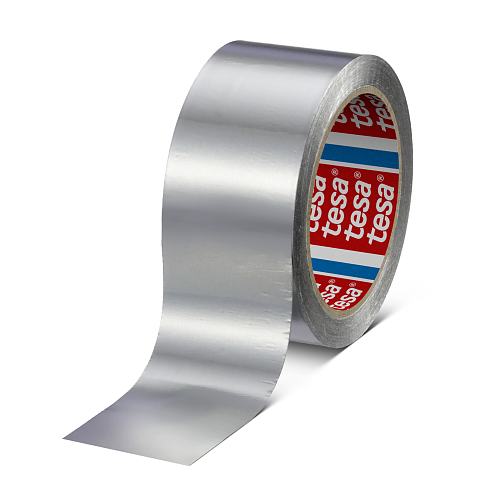

60630 Aluminum Foil
2.6 mil Aluminum Foil with Acrylic Adhesive
tesa® 60630 is a 2.6 mil. total, robust aluminum foil tape based on a 1.2 mil aluminum foil backing and has a transparent acrylic adhesive. This self-wound aluminum foil tape is commonly used for joining and sealing thermal insulation ducts and pipes, heat reflection, repairs on trailers and making substrates electrically and thermally conductive. It also serves as a barrier against moisture, vapors and gases.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | Aluminum |
|---|---|
| Adhesive | Acrylic |
| Thickness | 2.6 Mils |
| Tensile | 14.30 lbs/in |
|---|---|
| Elongation | 3.00% |
| Adhesive Activation | Pressure |
| Adhesion (unwind) | 73.1 oz/in |
| Min. Application Temp | 50° F |
|---|---|
| Min. Service Temp | -40° F |
| Max Short-Term Temp | 320° F |
| Max Long-Term Temp |
Product Features
- Flame retardant according to the requirements in UL 510A
- Easy to unwind
- Suitable for permanent applications
- Barrier against moisture, gases, and vapors
- Electrically and thermally conductive
- Mechanically stable
- Aging resistant
- Heat and light reflective
- Has past testing for Flame retardant according to DIN 4102, class B1
Markets Served
- Aerospace
- Appliance
- Automotive
- Industrial
- Construction
- Electronics
- Truck and trailer body
- Medical Device
Adhesive Tape Applications
- Reflecting heat radiation
- Making substrates electrically and thermally conductive
- Joining and sealing of thermal insulation, ducts and pipes
- Repairs on trucks and trailers
- Moisture, vapor & gas barrier
- Attaching refrigeration coils
- Chemical stripping masking
- Seaming and sealing
- Splicing thin gauge foils
- Chemical milling
Adhesive Tape Colors
- Shiny Silver
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
