Budnick Converting ®
tesa tape inc
88150

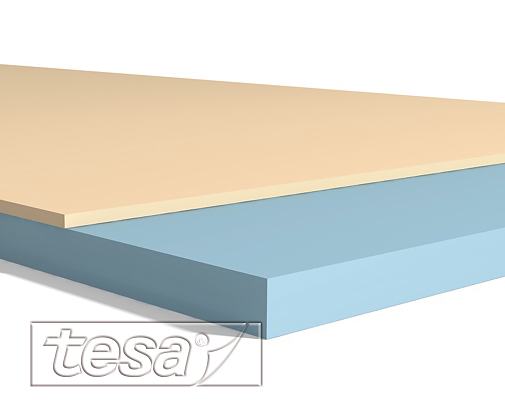

High Temperature & High Shear Transfer Tape
tesa® 88150 is a conformable, transparent, water-based acrylic transfer tape. The adhesive offers high temperature and high shear performance, and has been developed for lamination and converting applications.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | |
|---|---|
| Adhesive | Acrylic |
| Thickness | 4.99 Mils |
| Tensile | |
|---|---|
| Elongation | |
| Adhesive Activation | Pressure |
| Adhesion (unwind) | 27.4 oz/in |
| Min. Application Temp | 50° F |
|---|---|
| Min. Service Temp | |
| Max Short-Term Temp | |
| Max Long-Term Temp | 392° F |
Product Features
- Good die-cutting properties
- Available in 60" / 1524mm usable width
- Conformable to difficult 3D shapes
- Temperature resistance up to -40 °F
Markets Served
- Automotive
- Appliance
- Industrial
- Signage, Banners, & Printing
Adhesive Tape Applications
- NVH (noise, vibration, harshness) and BSR (buzz, squeak, rattle) materials
- Decorative fabrics
- Rubber materials for gaskets
- Lamination of flexible substrates
Adhesive Tape Colors
- Transparent
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
