Budnick Converting ®
tesa tape inc
88225

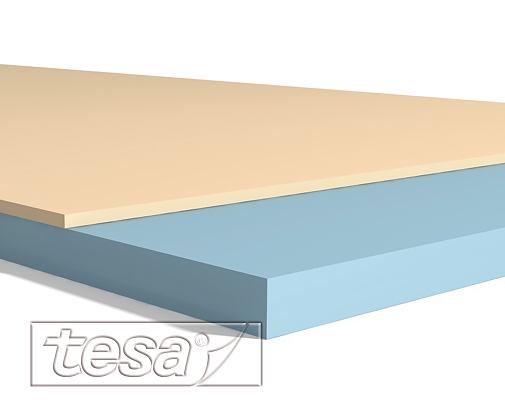

Low surface energy transfer tape
tesa® 88225 is a conformable, transparent, water-based acrylic transfer tape. The adhesive offers good performance on low surface energy surfaces, and has been developed for lamination and converting applications.
Converting Services
- Precision Cutting
- Die Cutting
- Slitting
- Printing
- Laminating and Coating
- Spooling and Finishing
- Consulting & Process Audit
- Prototyping
- Inventory Management
At Budnick, we specialize in custom converting these materials into labor saving, user-friendly parts.
| Backing/Carrier | |
|---|---|
| Adhesive | Acrylic |
| Thickness | 2.48 Mils |
| Tensile | |
|---|---|
| Elongation | |
| Adhesive Activation | Pressure |
| Adhesion (unwind) | 54.81 oz/in |
| Min. Application Temp | 50° F |
|---|---|
| Min. Service Temp | |
| Max Short-Term Temp | |
| Max Long-Term Temp | 356° F |
Product Features
- Temperature resistance from -40 °F
- High conformability
- High tack
- Good die-cutting properties
- Suitable for rough surfaces
Markets Served
- Signage, Banners, & Printing
- Industrial
- Automotive
- Appliance
- Commercial printing
Adhesive Tape Applications
- Lamination of flexible substrates
- NVH (noise, vibration, harshness) and BSR (buzz, squeak, rattle) materials
- Rubber materials for gaskets
- Plastics or vinyls for label and tag applications
- Decorative fabrics
Adhesive Tape Colors
- Transparent
Data provided by Budnick Converting, Inc.
The physical properties listed are typical values and are not to be considered as specifications. Our suggestions for use are based on tests we believe to be reliable. However, the purchaser must carry out their own tests to determine the suitability of the product for their internal use. Information is given in good faith, but without warranty.
It is essential, as with all pressure-sensitive tapes, that the surface to which the tape is applied be clean, dry and free of grease and oil.
Shelf life from date of manufacture is based on the product being stored at 70°F(21°C) / 50% relative humidity out of direct sunlight.
Specification compliance is dynamic and should only be used as a general guide. Always confirm that the tape you are interested in currently complies with all specification requirements. Please verify that the product number that you select is available in the proper size and color to meet your specification.
